1. ModbusTCP

Note

This feature is available only from Enterprise L license.

ModbusTCP is a variant of the Modbus protocol used for communications over TCP/IP. It is widely used by HMIs, SCADA systems and engineering stations to read and write the data (coils, discrete inputs, input and holding registers) of PLCs and other field devices. The default port is TCP 502; ntopng detects Modbus traffic also on TCP port 1502.

For each Modbus flow, ntopng keeps track of the function codes used, of the transitions between them, of the registers accessed and of the exceptions. ntopng shows this information in the flow details, stores it together with the flow and uses it to detect unexpected behaviours.

1.1. Flow Information

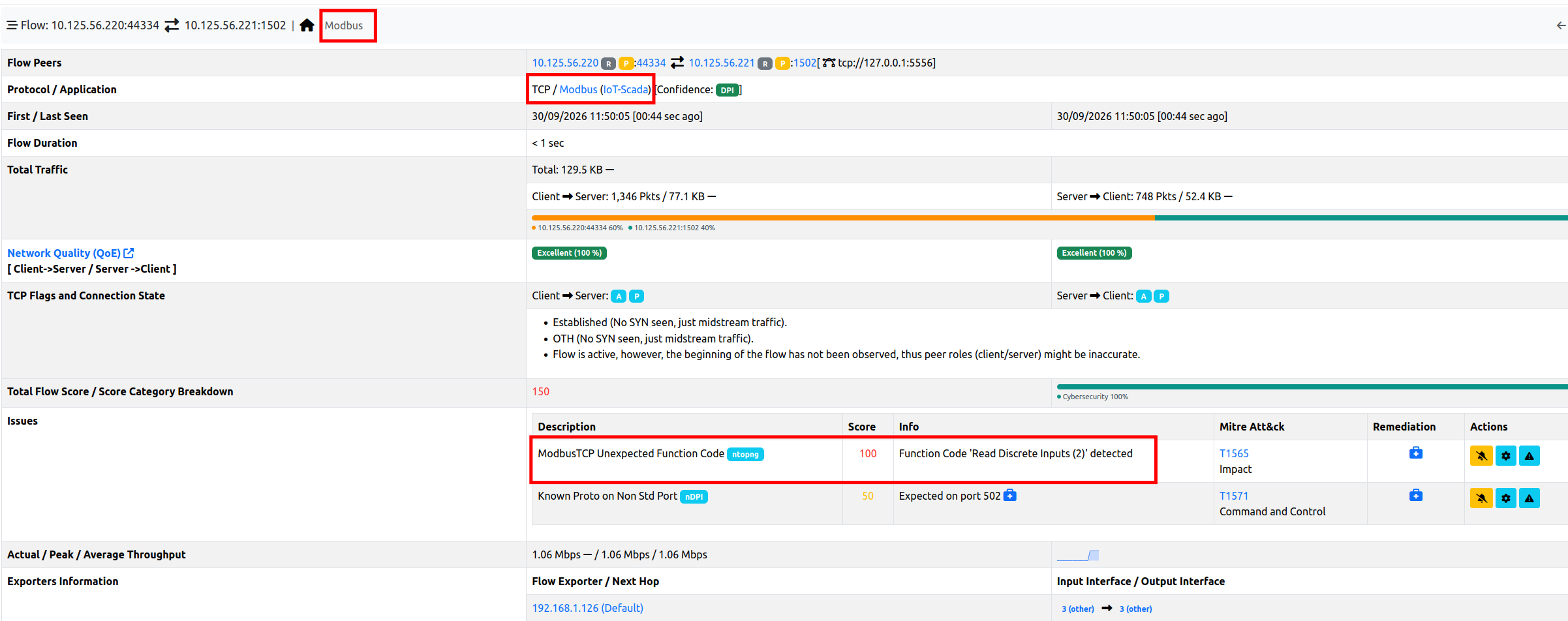

Modbus flows are reported in the flows list with the TCP:Modbus application protocol. When opening the details of a Modbus flow, the flow overview reports the protocol and, in the top bar, an additional Modbus tab. The Issues section lists the alerts triggered by the flow (see Behavioural Checks below).

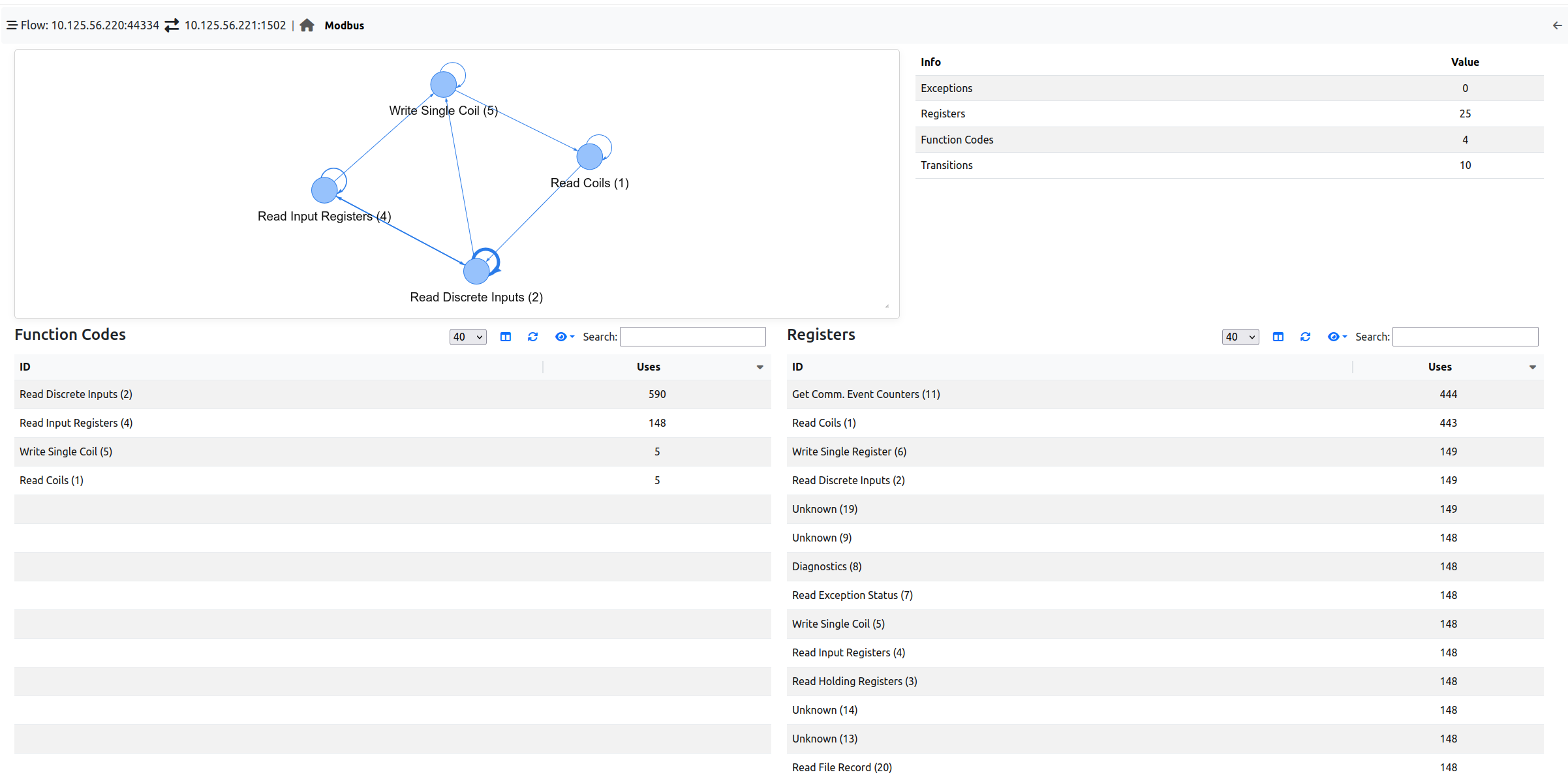

The Modbus tab contains the Modbus information of the flow:

Transitions graph (top left): each node is a function code used in the flow, and each arrow is a transition from a function code to the next one. The more transitions, the thicker the arrow. Loops on the same node mean that consecutive messages have the same function code (e.g. a request and its response, or the same request repeated over time by a polling HMI). The graph can be zoomed in/out with the mouse wheel and moved by dragging it.
Summary (top right): the number of Exceptions reported for the flow, and the number of distinct Registers, Function Codes and Transitions observed.
Function Codes (bottom left): the list of function codes used in the flow, with the number of times (Uses) each of them has been used.
Registers (bottom right): the list of registers accessed in the flow, with the number of times (Uses) each of them has been accessed. Only the register addresses are reported, not the values read or written.

A Modbus exception is a response by which the device reports that it could not execute a request (e.g. because the requested function or address is not supported).

Function codes are reported with their name and their numeric (decimal) value, e.g. Read Coils (1). These are the function codes known by ntopng; other codes are reported as Unknown (<code>).

Code	Name	Description
1	Read Coils	Read of the status of coils (discrete outputs)
2	Read Discrete Inputs	Read of the status of discrete inputs
3	Read Holding Registers	Read of holding registers
4	Read Input Registers	Read of input registers
5	Write Single Coil	Write of a single coil
6	Write Single Register	Write of a single holding register
7	Read Exception Status	Read of the device exception status
8	Diagnostics	Diagnostic functions (e.g. communication tests, counters reset)
11	Get Comm. Event Counters	Read of the communication event counter
12	Get Comm. Event Log	Read of the communication event log
15	Write Multiple Coils	Write of multiple coils
16	Write Multiple Registers	Write of multiple holding registers
17	Report Slave ID	Read of the device identification and status
20	Read File Record	Read of file records
21	Write File Record	Write of file records
22	Mask Write Register	Modification of a holding register through AND/OR masks
23	Read Write Register	Write and read of multiple registers in a single transaction
24	Read FIFO Queue	Read of a FIFO queue of registers
43	Encap. Interface Transport	Encapsulated interface (e.g. read of the device identification)
90	Unity (Schneider)	Schneider Electric proprietary function, used e.g. by the programming software
100	Scattered Holding Reg. Read	Proprietary function to read non-contiguous holding registers

In the example above, an HMI polls the device by reading its discrete inputs, input registers and coils (Read Discrete Inputs, Read Input Registers, Read Coils), and occasionally writes a coil (Write Single Coil).

The Modbus information is also available for the historical flows when flows are dumped to ClickHouse (see Historical Flows): the historical flow details report the same Modbus tab.

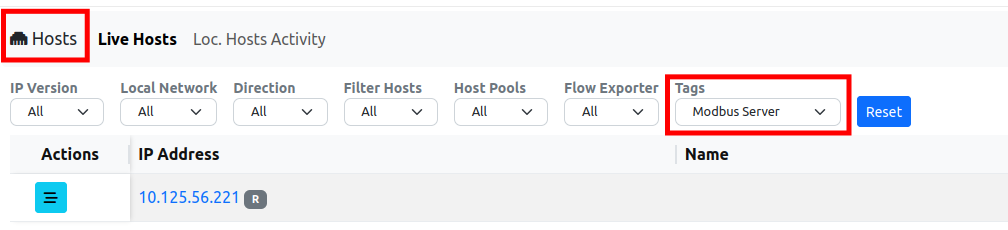

Finally, the server of a Modbus flow (i.e. the PLC or field device) is marked with the Modbus Server tag (see Tags). The tag can be used, for instance, to list all the Modbus devices in the Hosts page, by selecting Modbus Server in the Tags filter:

1.2. Behavioural Checks

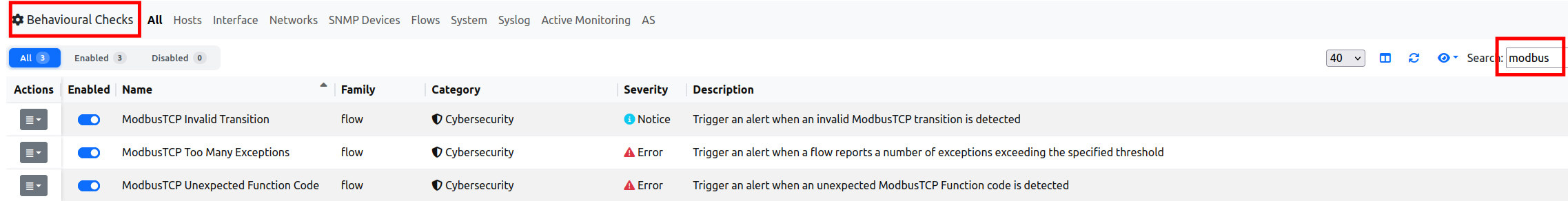

The Modbus information is used by three flow behavioural checks, available in Settings → Behavioural Checks (type modbus in the search box to list them). All of them are disabled by default.

1.2.1. Configuration

Each check is enabled with its toggle, and configured by clicking on its actions button.

1.2.1.1. ModbusTCP Unexpected Function Code

Triggers an alert when a flow uses a function code that is not in the list of the allowed function codes. The alert is triggered the first time the function code is used in the flow. Codes must be specified as decimal values (hexadecimal values are not supported), one per line or comma separated.

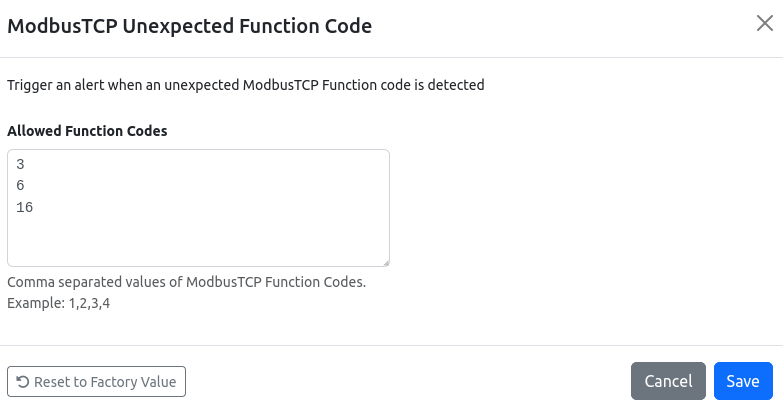

ModbusTCP Unexpected Function Code Configuration

By default, the allowed function codes are 3 (Read Holding Registers), 6 (Write Single Register) and 16 (Write Multiple Registers). The list should be tailored to the network, by allowing the function codes normally used by its HMIs and SCADA systems; for instance:

In the example above, the HMI also reads coils, discrete inputs and input registers, and writes coils: allowing only the default codes, an alert is triggered for Read Discrete Inputs (2). To consider this traffic as legitimate, allow: 1,2,3,4,5,6,15,16.
In a network where the devices are only read (e.g. by a monitoring system), allow only the read function codes, so that any write is reported: 1,2,3,4.

Function codes such as 8 (Diagnostics) or 90 (Unity, used by Schneider Electric programming software) are usually not part of the normal operations and are worth being reported.

Note that any function code not in the list (including the ones unknown to ntopng) triggers an alert.

1.2.1.2. ModbusTCP Too Many Exceptions

Triggers an alert when the number of exceptions reported for a flow reaches the configured threshold (default: 5 exceptions). Many exceptions may indicate a misconfiguration, a malfunction or someone probing the device (e.g. scanning for supported function codes or valid addresses).

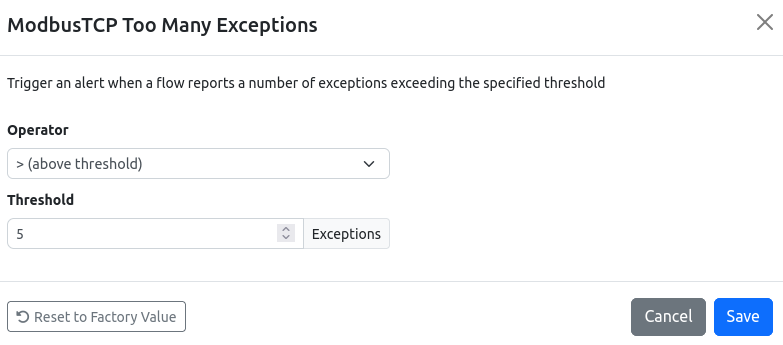

ModbusTCP Too Many Exceptions Configuration

1.2.1.3. ModbusTCP Invalid Transition

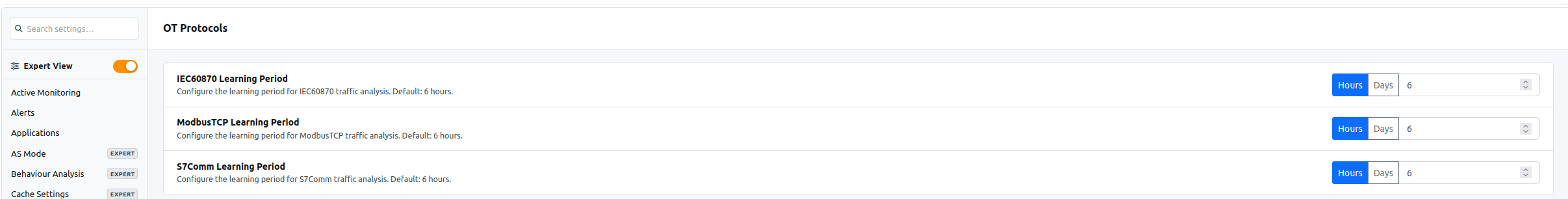

Triggers an alert when a flow reports a transition between two function codes that has never been observed before in the flow. For each flow, ntopng first learns the transitions between function codes for a learning period; once the learning period is over, any new transition triggers an alert. The learning period is configured in Settings → Preferences → OT Protocols → ModbusTCP Learning Period (the preference is visible in the Expert View); the default is 6 hours, and the minimum is 1 hour.

1.2.2. Alerts

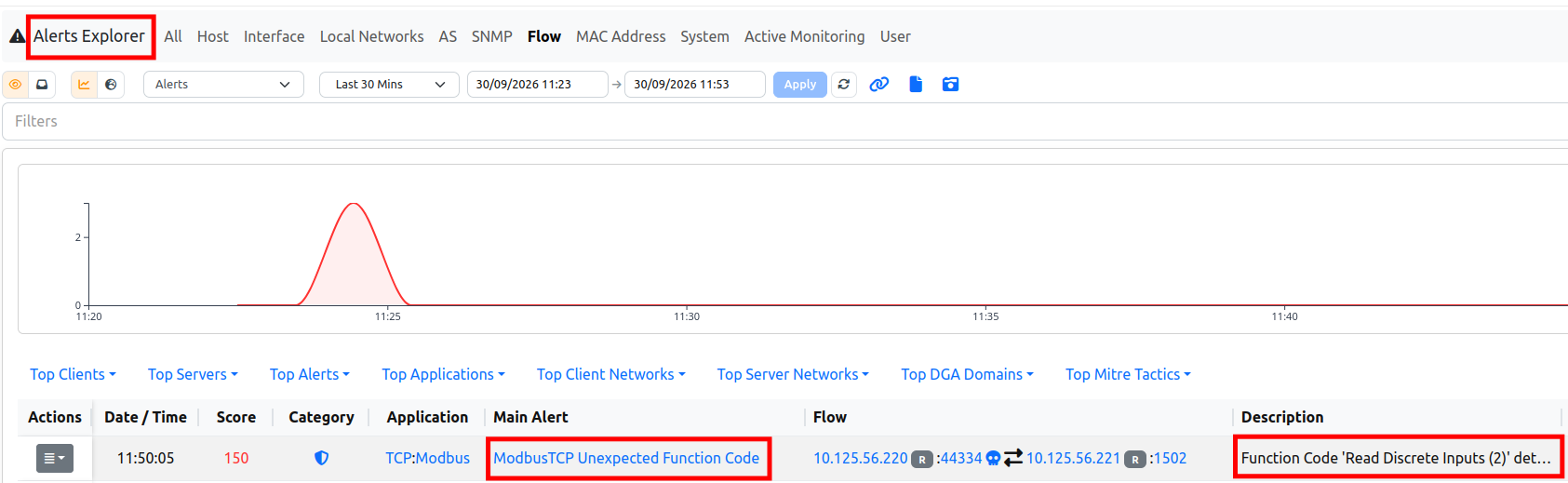

Modbus alerts are flow alerts: they are reported in the Alerts Explorer (under Flow) and in the Issues section of the flow details.

The alert description reports the details of the event:

Alert	Description (example)
ModbusTCP Unexpected Function Code	`Function Code 'Read Discrete Inputs (2)' detected`
ModbusTCP Too Many Exceptions	`5 Exceptions`
ModbusTCP Invalid Transition	`Read Coils (1) -> Write Single Coil (5)`
